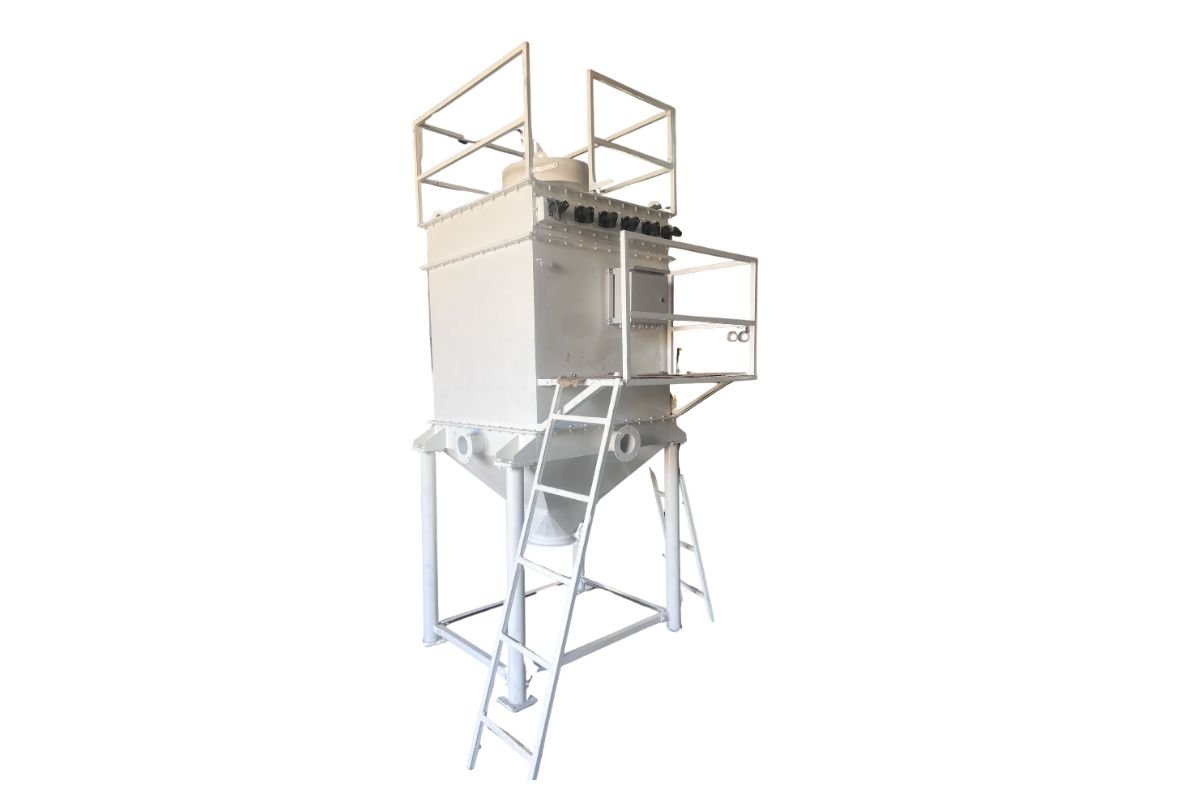

Ground-mounted Dust collector 36 bag (Reverse Air Jet Type)
Ground Dust Collector (36-Filter Version) is engineered for cement silo bottom installations to control dust during unloading, screw conveyor feeding, and material transfer operations. This model features 36 high-efficiency pleated filter cartridges, a heavy-duty dust hopper, and a top-mounted blower motor, ensuring powerful dust extraction and clean site operation.
Technical Specifications:
Construction:
- Model: Ground mounted 36 Filter Configuration
- Ground-mounted dust collector
- Heavy-duty MS body with powder-coated finish
- Integrated hopper for dust storage and discharge
- Suitable for cement, fly ash, micro silica, and fine powders
Filter System:
- 36 Pleated Cartridge Filters
- Media Options: Polyester Spunbond / Anti-static / PTFE
- Filtration Efficiency: 99%
- Total Filter Area: 50–70 sqm (based on media type)
- Automatic blower / pulse cleaning system (as per setup)
- Long service life and easy maintenance
Blower Motor (Top Mounted):
- Power: 3.2 kW
- Speed: 2800–3000 RPM
- Voltage: 415V, 3 Phase
- Protection Class: IP55 / IP65
- Type: TEFC Industrial Motor
- Designed for continuous high-suction performance
Operating Principle: The blower motor creates negative pressure, drawing dust-laden air from the unloading point into the collector. The 36 pleated filters trap fine particles, ensuring clean air discharge. Dust settles into the hopper and can be emptied manually or through a discharge valve.
Key Features:
- High-capacity 36-filter design
- Strong suction & faster dust recovery
- Robust structure for silo ground operation
- Easy filter replacement and service access
- Ideal for RMC plants and cement handling application
