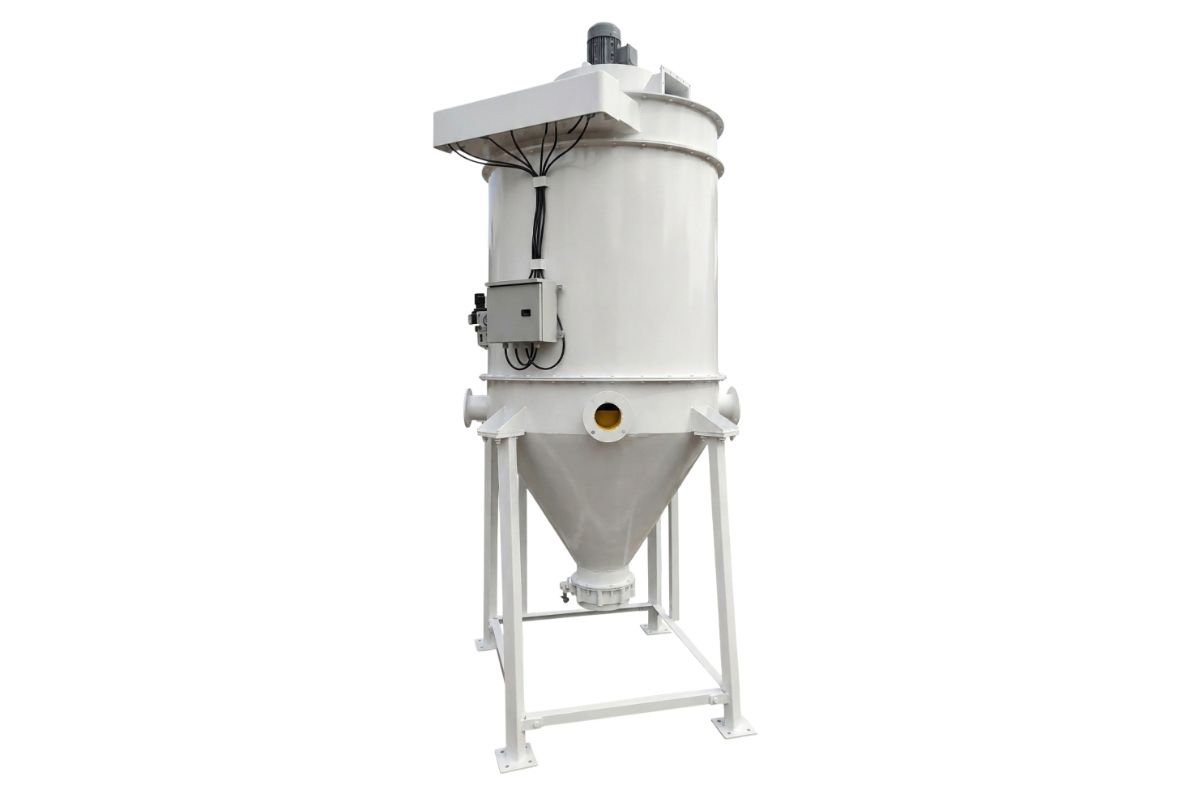

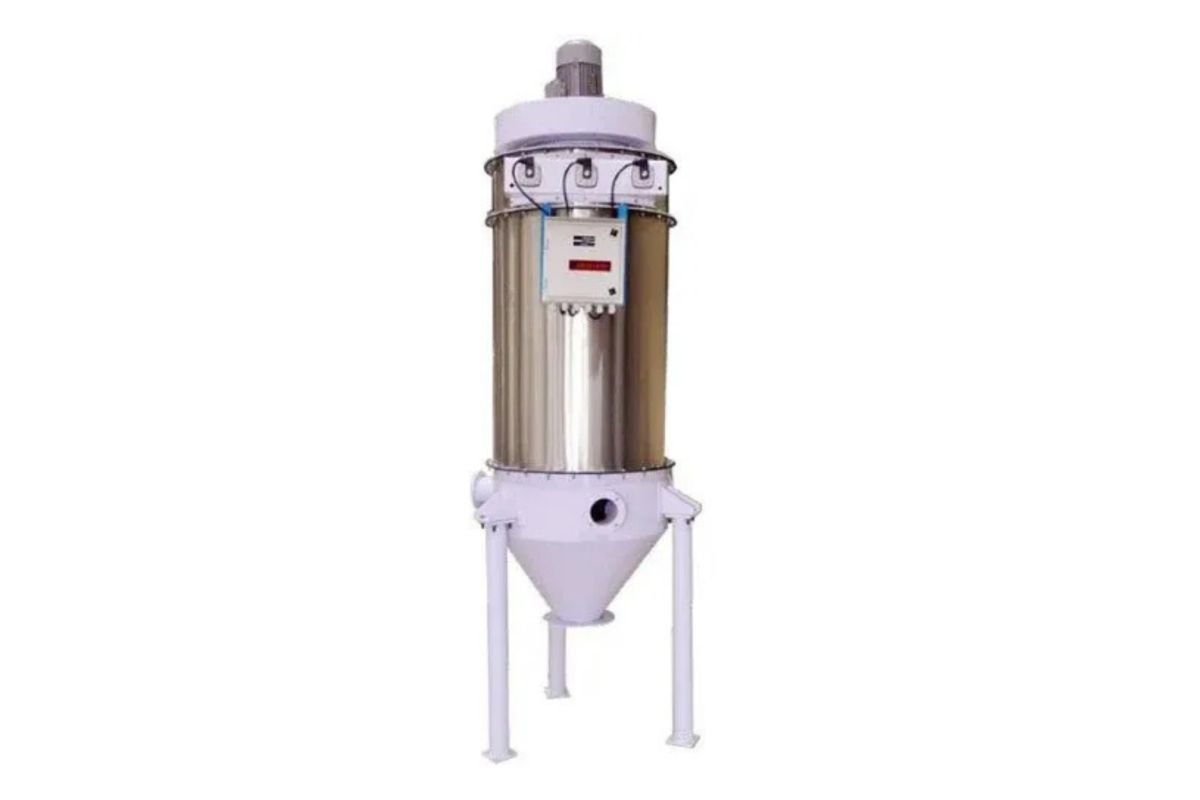

Top Mounted Dust Collector 14 bag (Vibratory Type/Pulse jet Type)
Product Overview
The Top Mounted Dust Collector (Vibratory Type /Pulse jet Type) is a high-efficiency solution designed specifically for venting applications. It features a robust, cylindrical stainless-steel casing designed for durability and performance in demanding environments like RMC and cement plants.
Function
Dust is separated from the dirty air flow by means of filter elements. An electric motor vibrator, fixed on a seal frame, puts both the frame and the filter elements into motion to remove the dust from the media, which then drops back into the bin or silo. To ensure effective operation, the cleaning system is designed to start only after pneumatic filling has been completed.
Key Features
Filtration & Performance:
- Offers a filtration area of 24.5 m².
- Handles air flow up to 1500 m³/hr.
- Capable of filtering particles smaller than 10 microns.
- Uses electric vibration cleaning to remove dust.
Design & Maintenance:

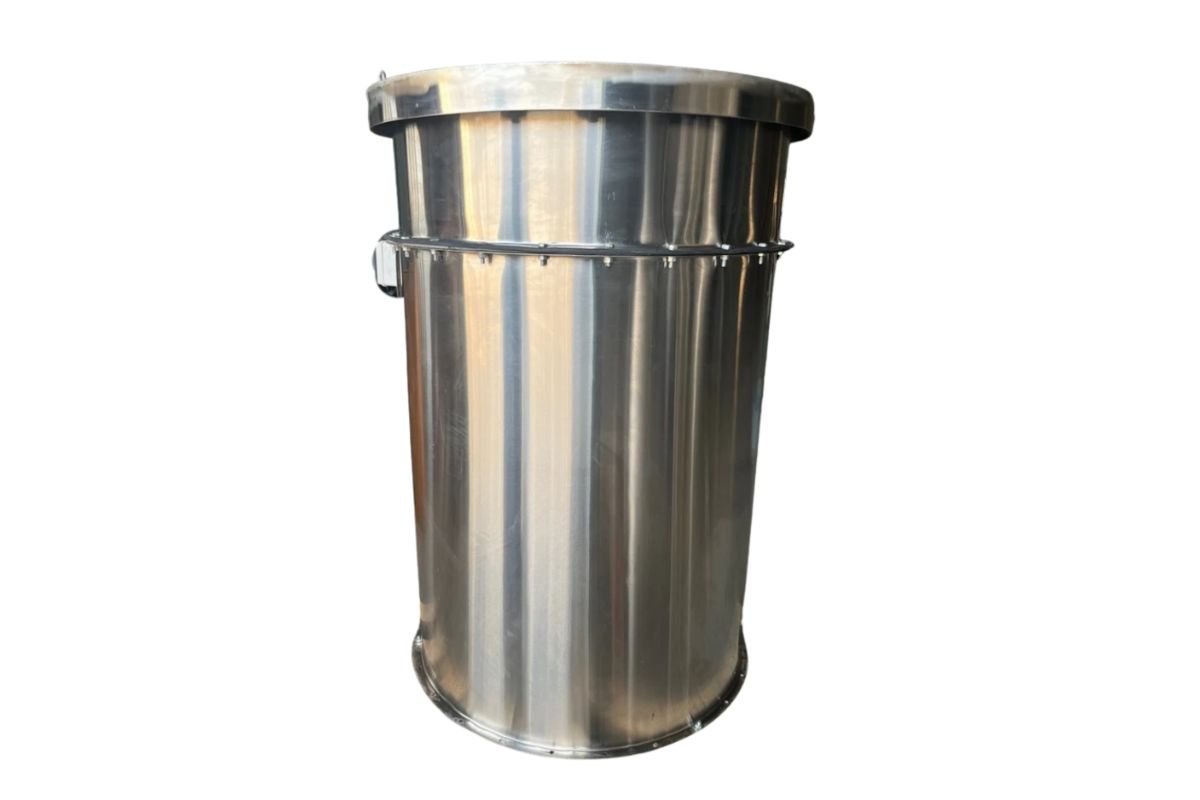

- Features a cylindrical stainless-steel casing with a bottom flange.
- Includes a weather and bird-proof cover, making it suitable for outdoor installation.
- Allows for tool-free replacement of filter elements.
- Equipped with a junction box for electrical wiring.
Operational Benefits
- Efficiency: No compressed air is required, as the system relies on a mains supply.
- Maintenance Friendly: Designed for low maintenance, with filter element replacement achievable within a few minutes by one person.
- Environmental Protection: Delivers a low dust emission level.
- Durability: Features a corrosion-free, durable casing.
- Material Recovery: Effectively recovers cement and fly ash, reducing material loss.
Operational Benefits
- Temperature Range: Operates efficiently between 10°C – 150°C.
- Outlet Emission: Maintains levels below 50 mg/Nm³
